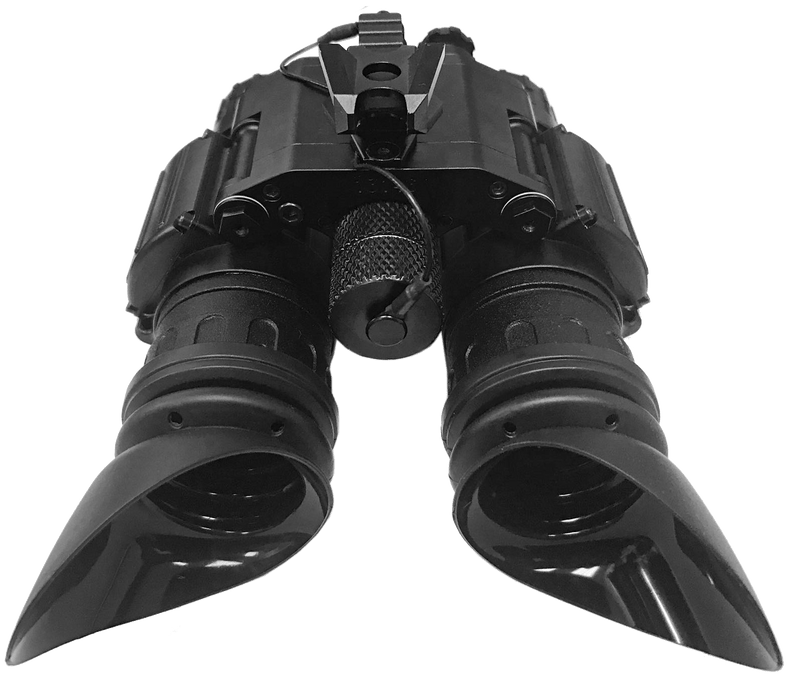

PVS-31C-MOD Dual-Tube Night Vision Goggles
Description
To order, contact sales@ctomsinc.com
PVS-31C-MOD is a versatile and easy-to-operate night vision dual-tube binocular-goggle unit with superior depth perception. It is mostly used for conducting all kinds tactical operations in both rural and urban environments. PVS-31C-MOD combines ergonomic design with improved functionality and accommodates features such as a dedicated Instant-On-IR button: this enables to quickly and momentarily engage IR illuminator without having to operate the switch to communicate between crew members using Morse code. The connector located at the front of PVS-31C-MOD is used to supply power to the unit from almost any power source: external battery pack, USB power bank, 12V car socket and so on. The device is also be powered by AA or CR123 battery that can be installed regardless of polarity—it is just one less thing to worry about in the dark environment.
**Canadian Export Permit Required. GSCI provides assistance in obtaining Permit.
Main Applications:
- Defence
- Security
- Surveillance
- Border Patrol
- Navigation
- Reconnaissance
Configurations/Tube Options:
Available Configurations (Image Intensifier Tubes) | ||
---|---|---|
Model Name | Generation | FOM |
PVS-31C-MOD-GA2 | 3 | 1600 .. 1799 |
PVS-31C-MOD-GA2-AG | 3, Autogated | 1600 .. 1799 |
PVS-31C-MOD-GA3 | 3 | 1800+ |
PVS-31C-MOD-GA3-AG | 3, Autogated | 1800+ |
PVS-31C-MOD-XR5 | XR5, Autogated | 1600 .. 1799 |
PVS-31C-MOD-XR5-ONYX | XR5, Autogated, White Phosphor |
1600 .. 1799 |
PVS-31C-MOD-4G | 4G, Autogated | 1800+ |
ECHO TUBES ARE ALSO AVAILABLE |
Features
- Universal Night Operations Tool
- Unique Safety Features
- Extended Range Observation
- High Situational Awareness
- Accepts External Power Sources
- Preferred Choice of NATO Forces
Kit Contents
- Dual-Tube Night Vision Goggles with Bayonet or Dovetail Bracket Installed
- Rubber Eyecups (2 installed on the device) + Spare with Retaining Rings
- Sacrificial Window(2pcs)
- Stow Safety Feature (Integrated)
- AA Battery Extension Adapter (Installed on the device)
- Rubber Daytime Filter with Training Hole (Installed on the device)
- Adjustment Kit: Allen Kay + Mini-Wrench
- USB Power Cable
- Neck Cord
- Soft Carrying Pouch
- User Manual
- Waterproof Hard Case
- 7-year Warranty with Activation Form
- Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
Specifications
TECHNICAL DATA | |
---|---|
Optical Magnification | 1X |
Objective Lens Focal Length | 27mm |
Focusing Range | 0.25m .. Infinity |
Diopter Adjustment Range | -6 .. +4 |
Interpupillary Adjustment Range | 50mm .. 90mm |
Built-In IR Illuminator | Yes, 950nm |
Momentary IR-On Button | Yes |
IR-On Indicator | Yes |
Manual Gain Control | Optional * |
3-Position Switch | Yes: Off / On / IR |
Bright Light Protection | Yes |
Automatic Light Overload Shut-Off System | Yes |
Low Battery Indicator |
Yes |
Stow Safety Feature | Yes |
Flip-Up-off Feature |
Yes |
Selective Channel Engagement | Yes |
Power Source |
1pc AA or 1pc CR123 |
Battery Life |
40 Hours |
External Power Supply | 4VDC .. 15VDC |
Dimensions | 108 x 105 x 70mm |
Weight | 595 grams |
Operating Temperature | -40°C .. +50°C |
Warranty | 7Years, Limited |
Made In Canada | ITAR-Free |
