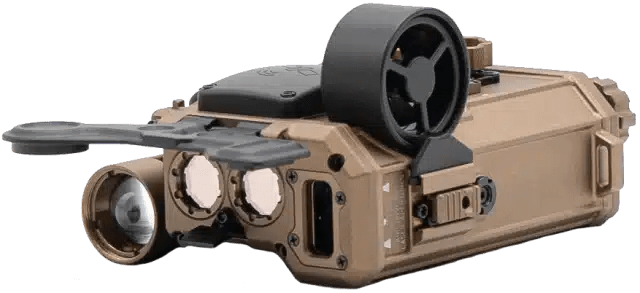

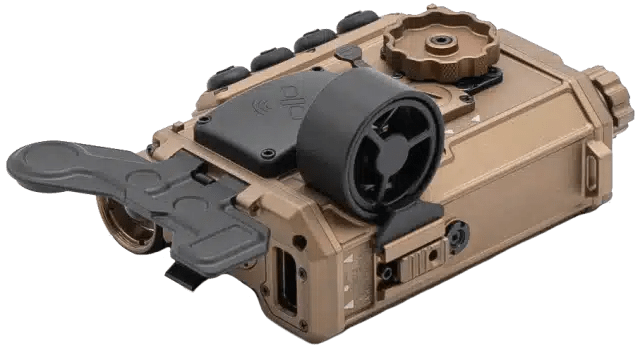

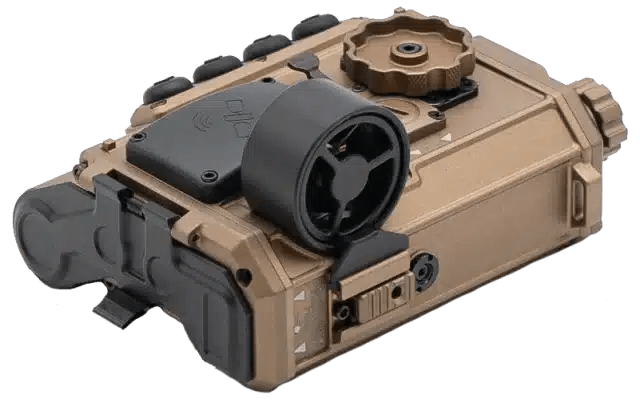

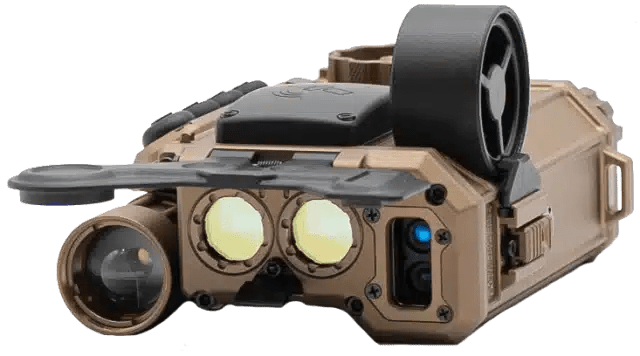

QRF-4500-BC Advanced Fire Control System and Target Designator

Description

All-in-One Tactical Fire Control System

The QRF-4500™-BC is a cutting-edge, all-in-one rapid targeting and ranging module engineered for ultimate performance in modern battlefield environments. Designed for manned or unmanned remote-controlled systems, this unit integrates seamlessly with a wide variety of weapons and optics—delivering unmatched precision, ruggedness, and versatility.

**Canadian Export Permit Required. GSCI provides assistance in obtaining Permit.

Main Applications:

Ideal for military and special operations forces, the QRF-4500™-BC is purpose-built for reconnaissance, tactical surveillance, and engagement within any visible range. It replaces multiple single-function devices—consolidating mission-critical data into one streamlined interface to increase operator efficiency and effectiveness.

Key Features:

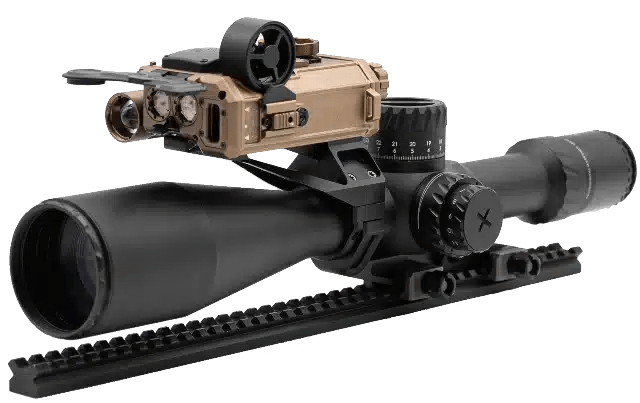

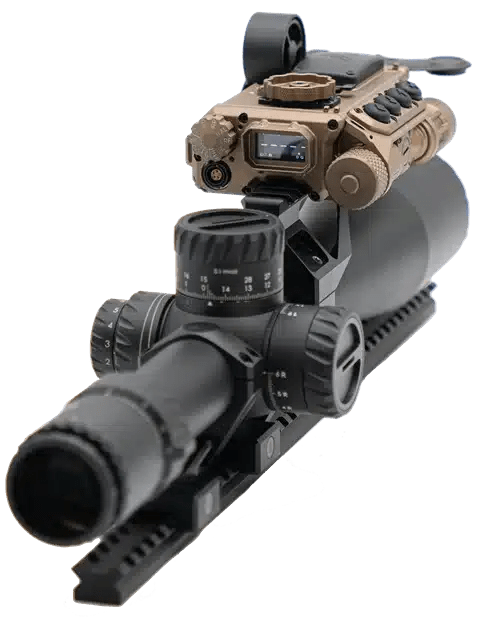

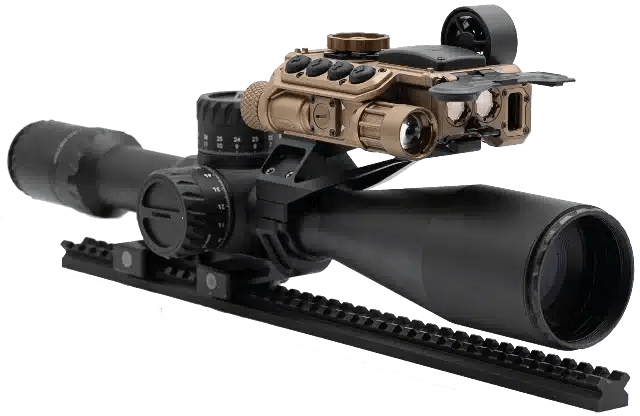

• Universal Compatibility: Easily mounts to any weapon platform or optical system, including day sights, night vision, thermal imaging, and fusion devices.

• Rugged & Reliable: Built to withstand extreme conditions, including use on high-caliber weapons like .50 BMG / 12.7×99mm NATO anti-materiel rifles and machine guns. The aluminum-milled housing ensures high structural integrity and IP67-rated water and dust protection.

• Compact & Low-Profile: Maintains clear access to controls and avoids interference with other mounted systems.

• Real-Time Data Integration: Ranging and orientation information is displayed directly on all GSCI-made thermal and fusion systems.

• Multi-Sensor Orientation HUD: Features a GSCI proprietary 9-Axis Absolute Orientation HUD, combining a magnetometer, accelerometer, inclinometer, and gyroscope for superior tracking and situational awareness.

• Advanced Ballistics & Weather Integration: Includes a built-in ballistic calculator and weather station, with support for 12 weapon and ammunition profiles for accurate first-round impacts and efficient shot correction.

• Laser & Illumination Suite: Equipped with a visible or IR laser pointer, IR illuminator, GPS, and digital compass for total day/night operational capability.

• Multi-Role Functionality: Acts as a ground target designator and a fully integrated fire control tool for reconnaissance, surveillance, and precision engagement.

Specifications

• For hand-held, optics, and weapon mountable applications
• Can be paired with various optical-electronic systems
• 1550nm LRF wavelength
• 4.5km (2.8mi) maximum ranging capability
• Rapid and continuous (uninterrupted) accurate measurements
• 128 x 64 OLED display with brightness adjustment
• Iron sights for hand-held aiming and ranging
• Synchronized compass, GPS and rangefinder
• Provides real-time positioning information for both the user and the target
• 3 memory slots for target distance measurements
• Measures distance between two targets
• Measures speed, heading direction and track angle
• 12 weapon and ammunition presets/profiles

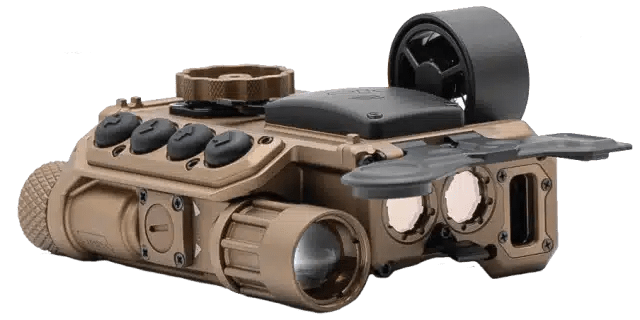

• Adjustable IR laser + Red or Green visible laser and focusable IR illuminator
• Compact and rugged all-aluminum housing
• Mounts on MIL-STD-1913D “Picatinny” rail
• Remotely controlled via cable connection
• Ballistic calculator and weather station.
