SR901RT Multi-Purpose Table/Portable Surgical Table
SKU 185-SR901RT
Original price
$19,510.00
-
Original price
$19,510.00
Original price
$19,510.00
$19,510.00
-
$19,510.00
Current price
$19,510.00
Description
This multi-purpose utility table can be utilized to provide a lightweight and compact critical care platform in a surge scenario allowing doctors to stabilize casualties, and the seriously ill; even to operate when necessary and prior to transport.

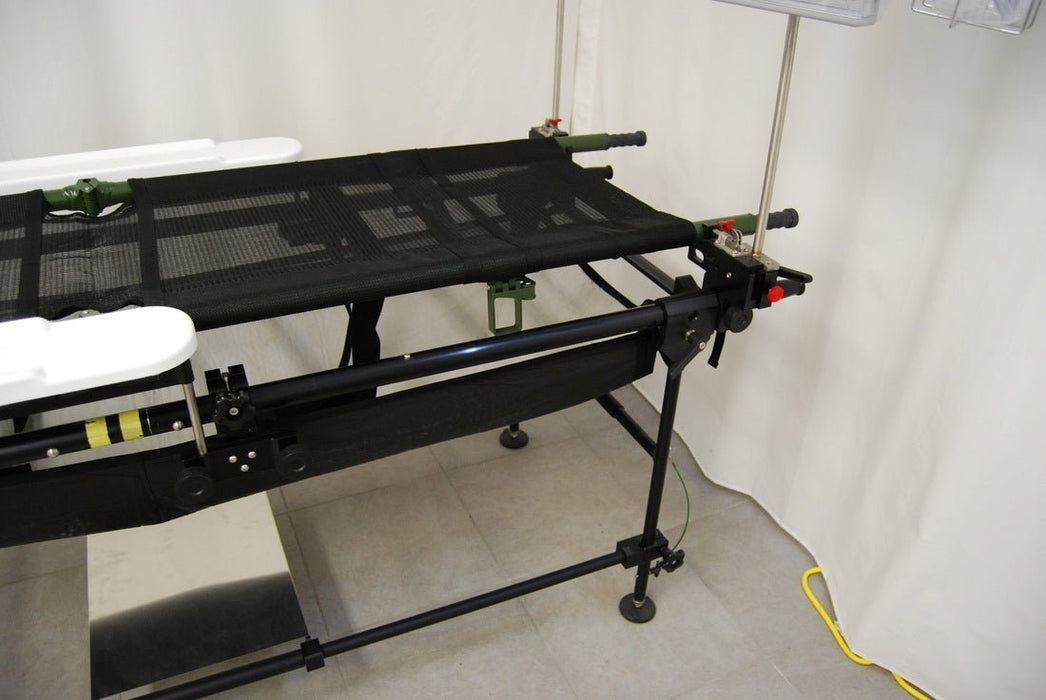

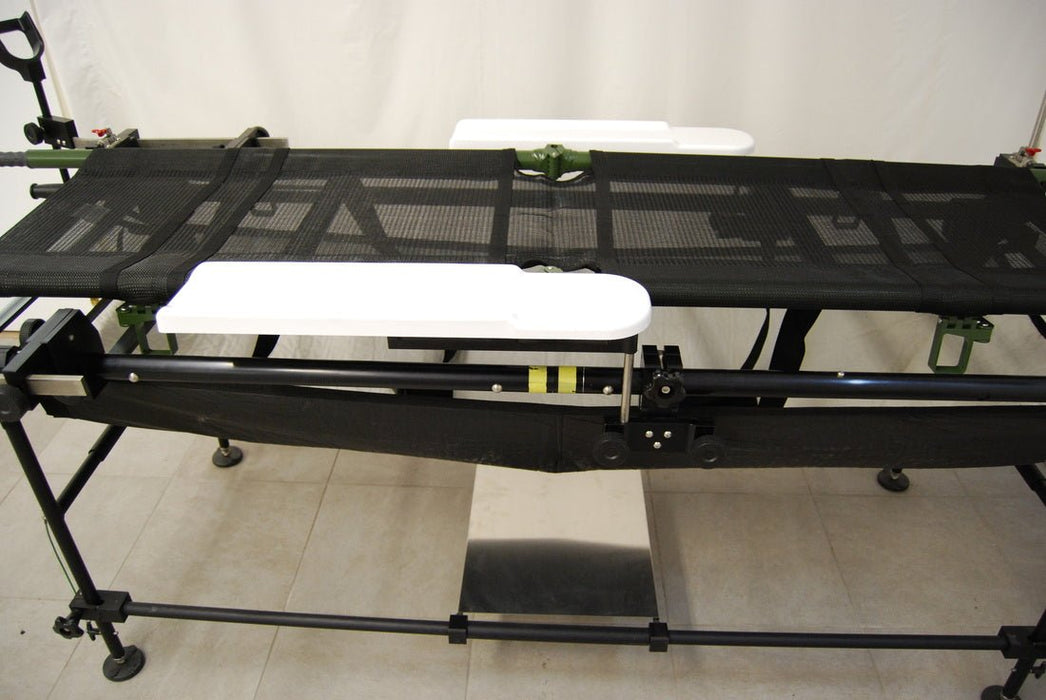

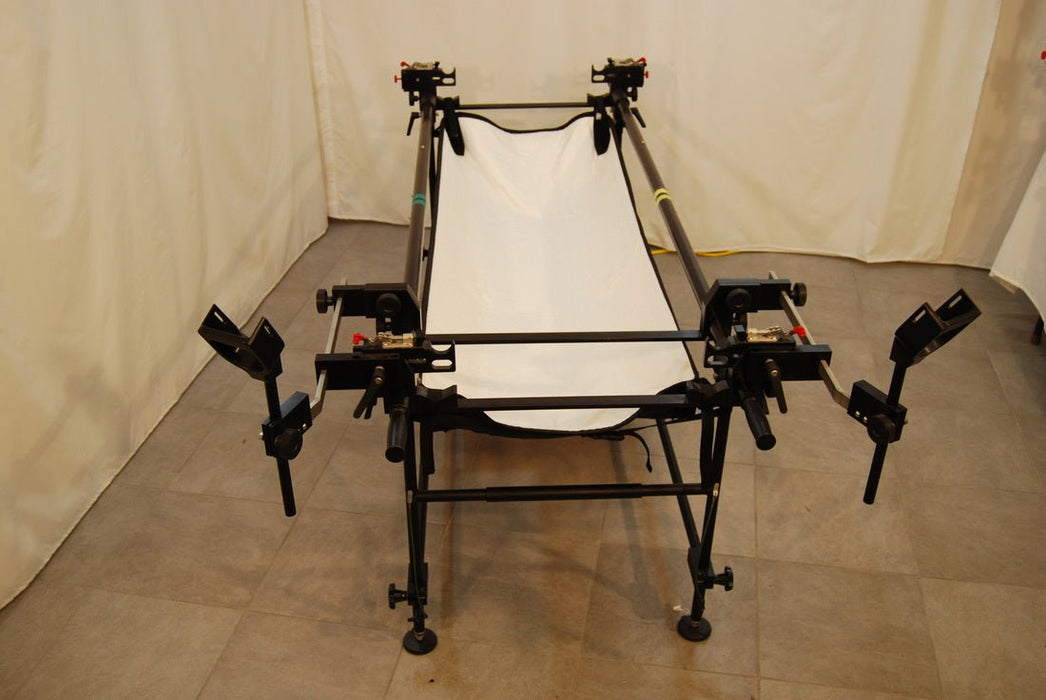

The SR901 Model and all of its variants are designed to accommodate a NATO approved stretcher and form an "operating room capable" appliance for patient exam, critical care treatment or surgical procedure in a far forward/surge medical application. The Model SR901RT system is made up of the basic table stand (SR901), and when fitted with a stretcher (
Raven or
Talon
) it is referred to as a SR901RTS.
Experience in the field has demonstrated that mounting accessories to the stretcher stand is preferable to mounting accessories to the stretcher for the simple reason that it is then possible to move patients on and off the stand using the stretcher without disturbing the treatment set-up. This also aids in decontamination and clean-up since it is easy to simply change the stretcher to achieve a new clean patient treatment surface.

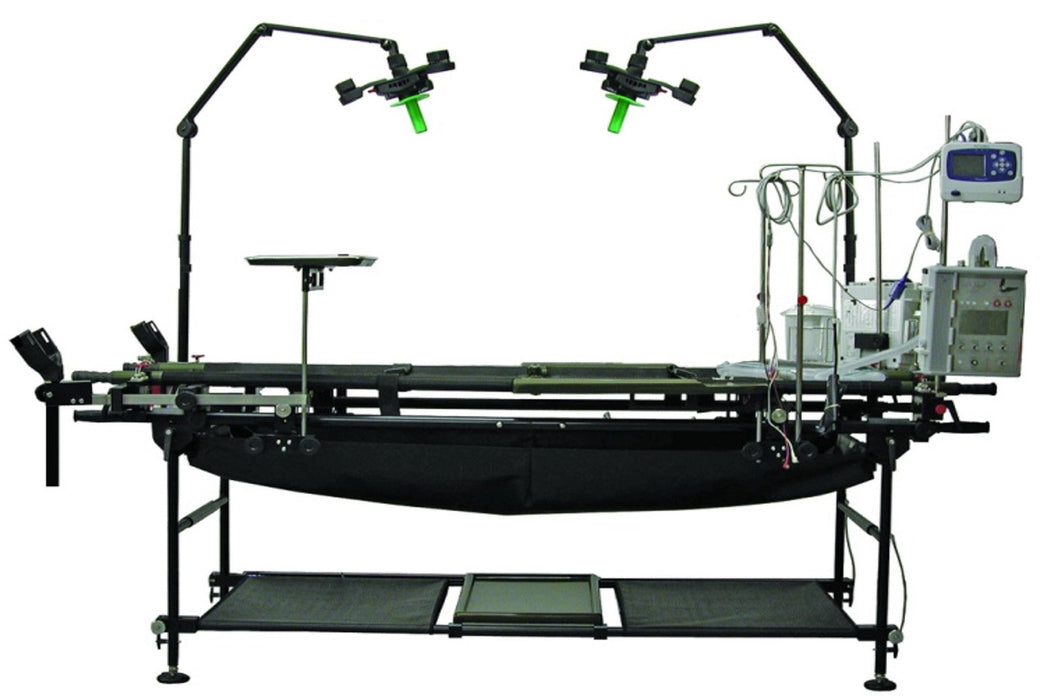

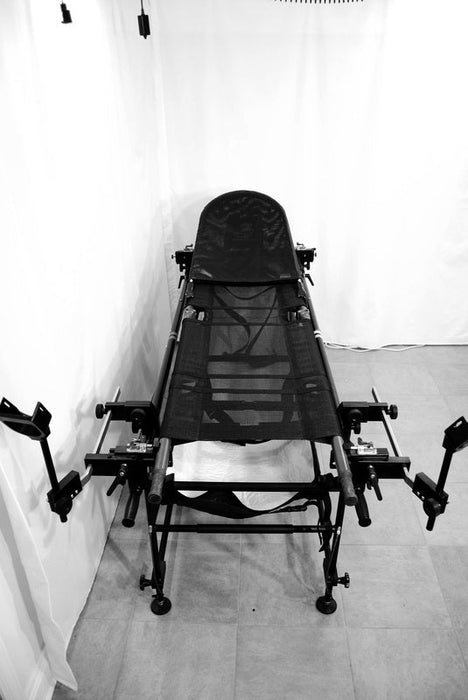

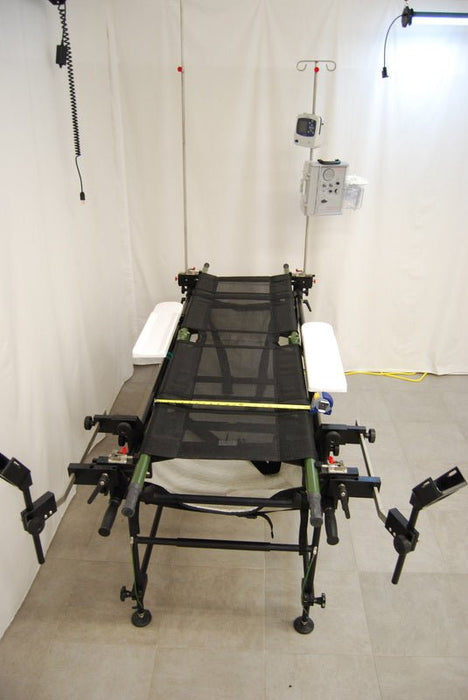

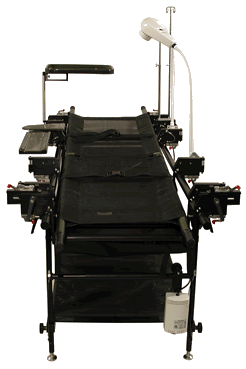

Includes Table Stand & Carry Bag, Optional Accessories Shown Sold Separately
NATO compliant Stretcher is OPTIONAL
Features
- Easily assembles in 15 to 25 minutes
- At 78 Lbs. (35.5 Kg), as packaged, it can easily be handled and set up by one person.
- Once assembled, the SR901RT table can be moved easily with a net weight of 69 Lbs. (31 Kg).
- Each of four legs of the SR901RT has a manual adjustment that allows the table to be raised or lowered a total of 5 inches (in one inch increments). This same feature allows the table to be adjusted for uneven floors in challenging terrain.
- Trandelenberg capability allows the patient head end of the stretcher to be lowered or the foot end to be lowered as required.
- The SR901RT stand is designed with a minimum of holes or openings in the stand tubes and supports to facilitate decontamination wash-down.
- The removable stretcher features allow for a fresh, clean stretcher to be installed before each patient.

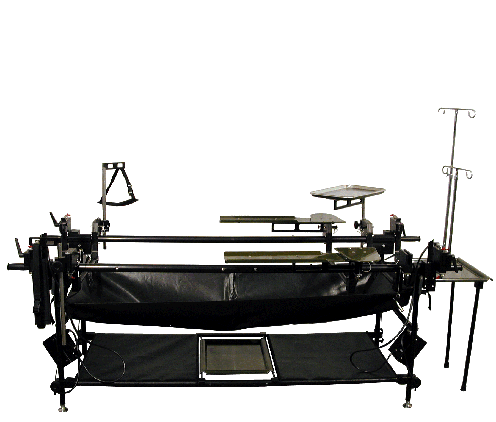

- The absorbent fluid capture blanket will absorb and retain up to 3 liters of fluid without leakage. A water-proof fluid collector can be installed with drain hole for decontamination applications.
Specifications
- Platform Height - 34"
- Platform Length - 79"
- Platform Length Incl. Handles - 89"
- Platform Width - 33"
- Platform Width Incl. OB Stirrups - 47.5"
- Armboard Length - 24"
- Armboard Width - 5.5"
- Medical Accessory Tower - 29"
- Adjustable IV Poles - 17" (Min) - 35" (Max)
- Weight - 78.5 lbs.
- Patient Load - 400 lbs
- Material: 6061 Aluminum Alloy with MIL-A-8625 Type III anodize and where applicable SAE 321 Corrosion Resistant Stainless Steel, passivated
Available Accessories

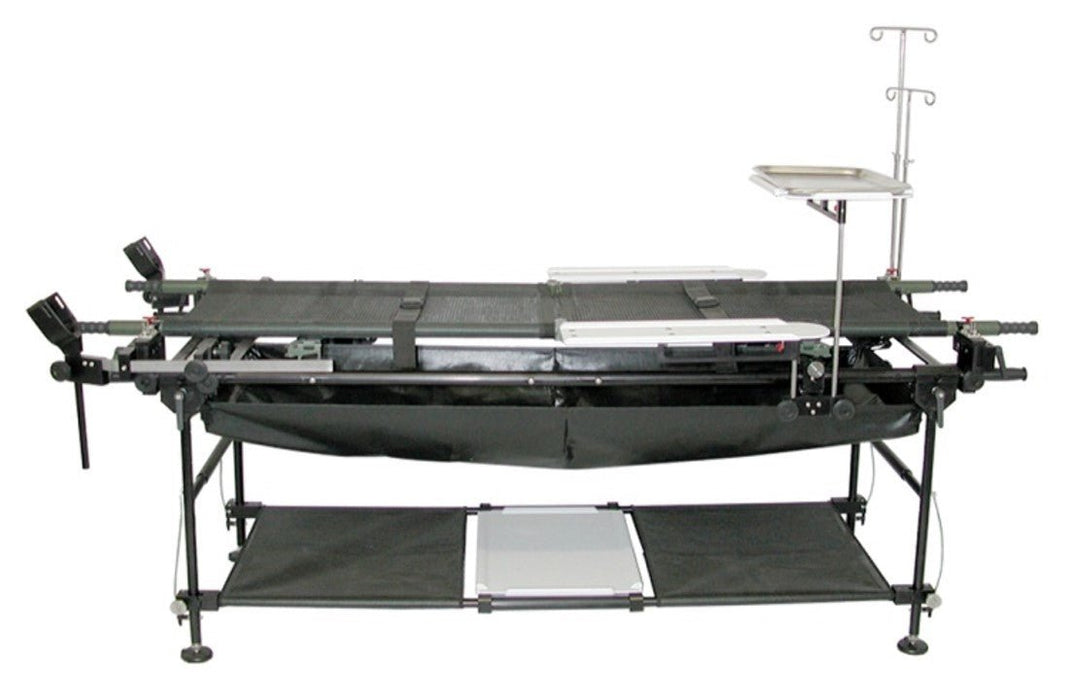

- Accessory Kit A: 2x accessory clamps, 2x IV Poles, 2x Arm Boards, 1x Mayo Tray, 2x Medical Accessory Towers w/2x Impact Mounting Clamps, 1x Carry Bag w/Foam Insert for Parts

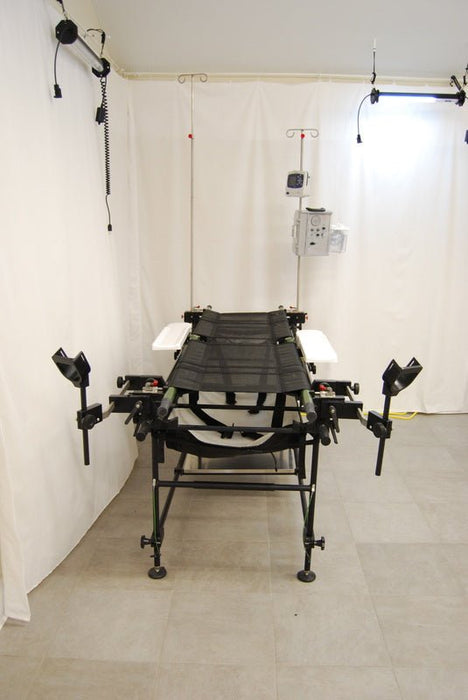

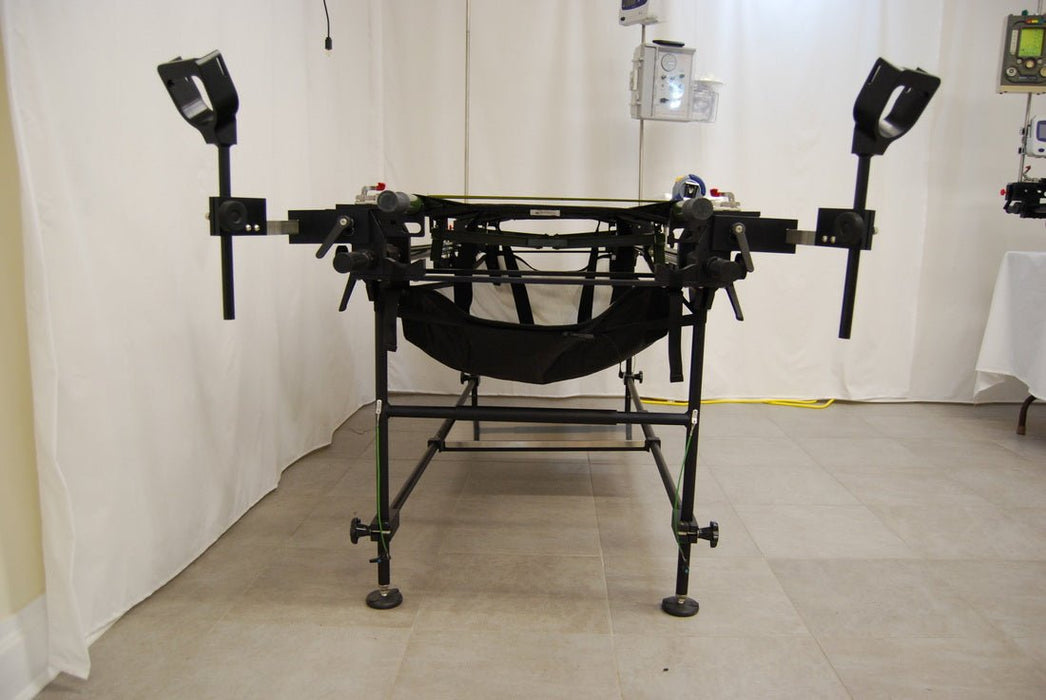

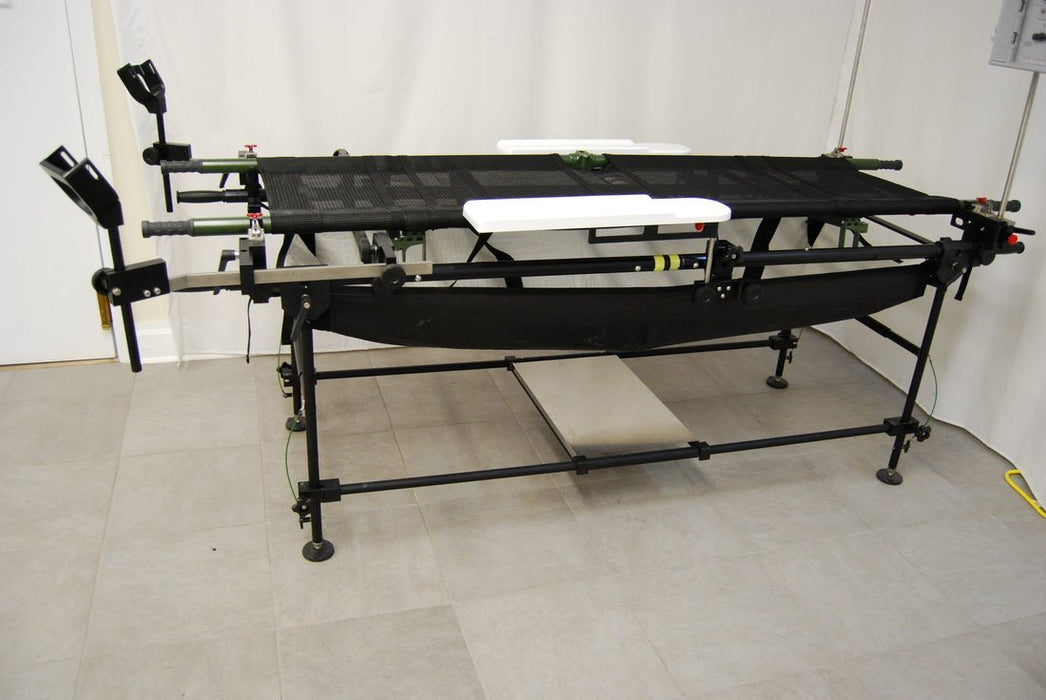

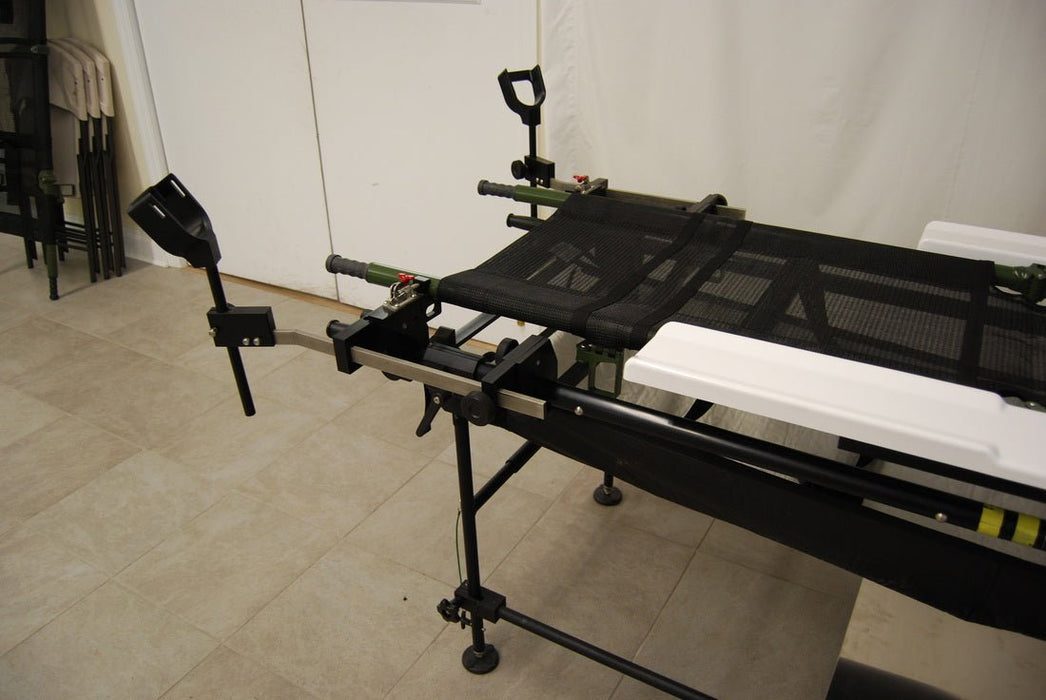

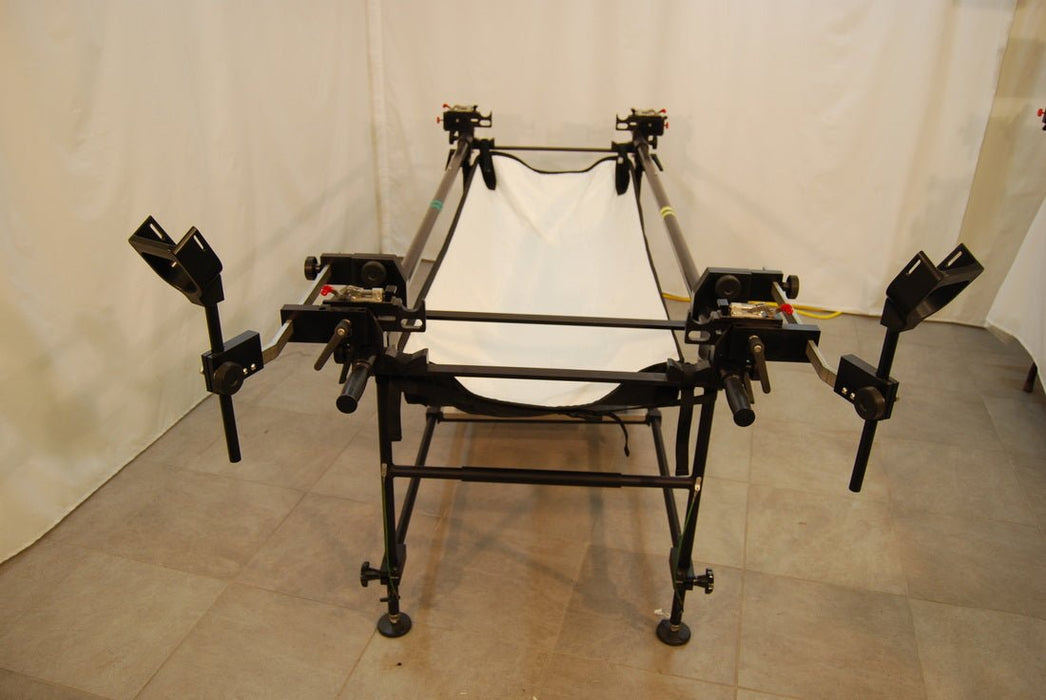

- Accessory Kit B: 1x Stirrup Crossmember, 2x Stirrup Assembly, 2x Stirrup Key Assembly, 2x Stirrup Rails, 1x Carry Bag w/Foam Insert for Parts

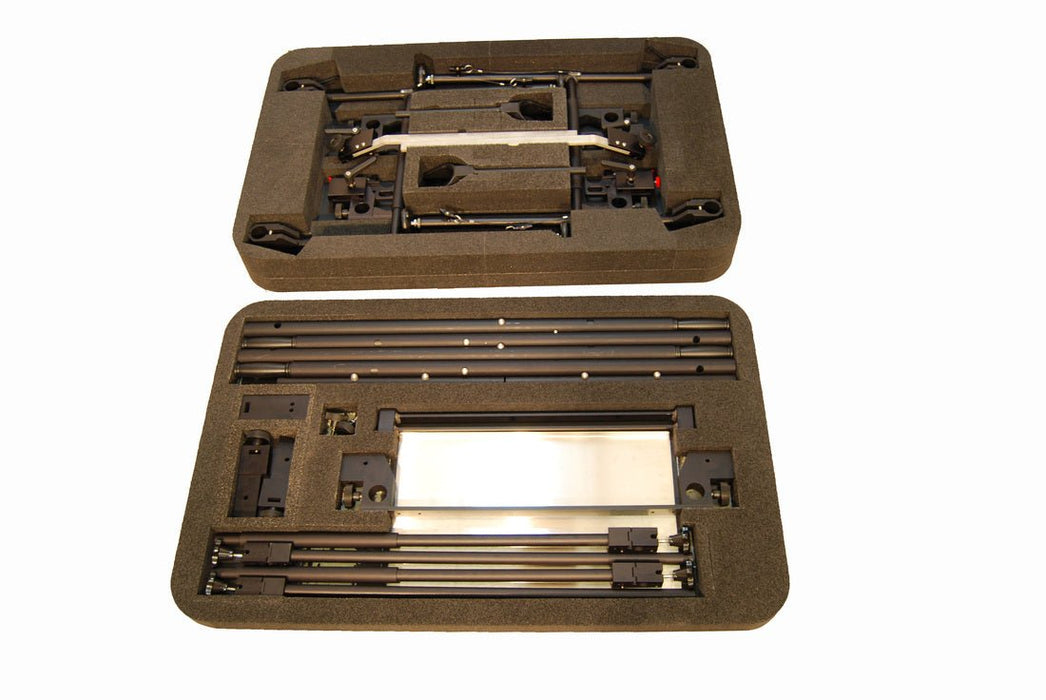

- Accessory Kit C: 2x Light Clamp Assembly, 1x Carry Bag w/Foam Insert for Parts
- Raven or Talon Stretcher(s)
Documentation
Safety Assessment on the SR901RT done for the US Marines for battlefield applications
